RS3 Facelift — Stage 2 ECU & TCU Tune
Original dyno report The sheet the chart above was digitised from
Scanned from the workshop's own dyno software. The interactive chart above is digitised from these curves — no figure on this page is estimated.
- Power increased by 79 kW
- Torque improved by 103 Nm
- Enhanced intake flow efficiency
- Optimised transmission calibration
- Improved intercooler cooling capacity
- Reduced exhaust backpressure

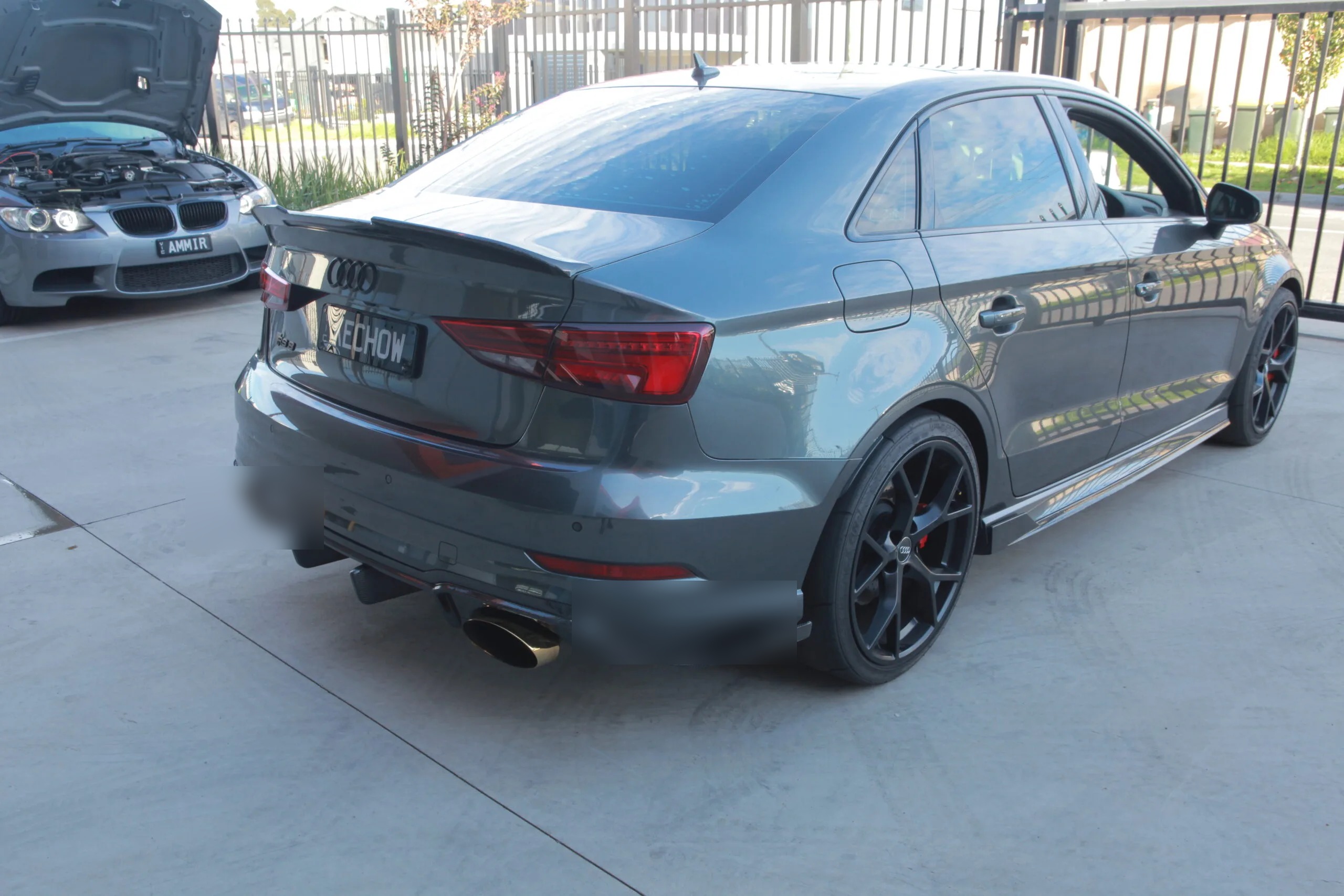

The 2017 facelift RS3 responds well to airflow improvements, and this build proves the point. With a billet inlet manifold, carbon intake, upgraded intercooler and full catback exhaust, the five-cylinder had the breathing headroom to make proper use of a combined ECU and TCU calibration.
The result: 312 kilowatts and 533 Newton-metres at the wheels, up from 233 and 397 respectively. That's a 79 kW lift without touching the turbo or internals. The TCU tune sharpens shift behaviour and allows the drivetrain to hold gears under load, which suits the way these cars are used on track or private roads.
Stage 2 on this platform is about maximising what the factory hardware can do reliably. No heroics, just a solid base for closed-circuit work.
Is the factory turbo and fuelling system adequate for this output?
Yes. The standard turbo and fuel system on the RS3 facelift support this output with the breathing mods listed. No upgraded turbo or injectors were required.
Why tune the TCU as well as the ECU?
The TCU calibration adjusts shift points, torque limiters and clutch pressure to match the extra torque. Without it, the gearbox will pull timing or refuse to hold gears under full load.
What fuel is this calibration designed for?
Fuel type was not recorded with this file. Confirm with your Protunes account manager whether it's a 98 RON or flex-fuel calibration before supply.
This calibration was developed for a workshop like yours
The Audi RS3 above was calibrated by Protunes for a partner workshop — they did the vehicle work and kept their customer; we did the calibration engineering. Add professional ECU and TCU calibration to your workshop without employing a calibration engineer.
