Nissan Patrol ZD30 Tuning & Calibration
The GU Patrol's 3.0 ZD30 is a favourite touring diesel — and a fussy one. Getting its boost and exhaust temperature under proper control is exactly what a real calibration is for.

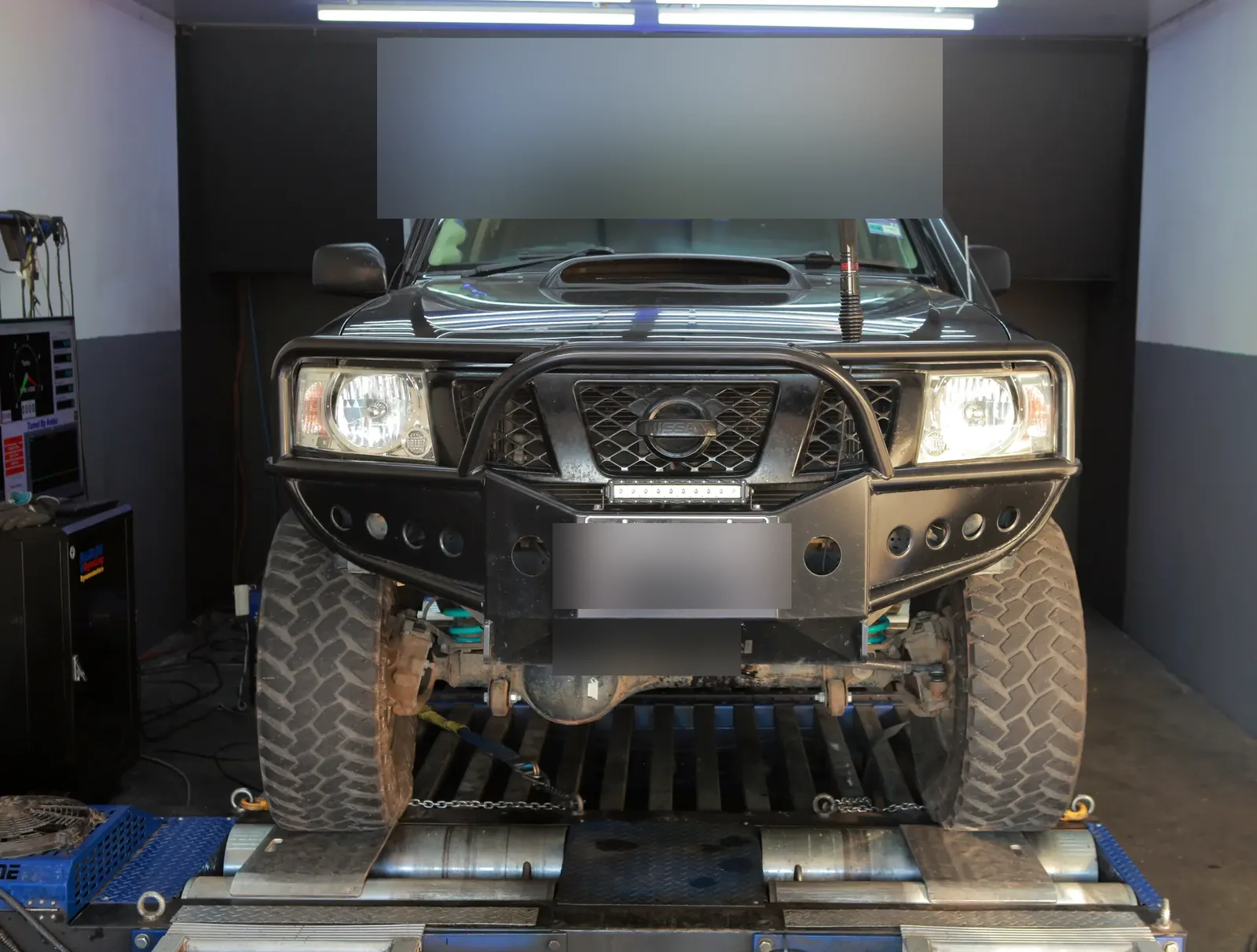

Nissan Patrol Y61 (GU) 3.0L ZD30 Turbo-Diesel
The Nissan Patrol Y61 (GU) 3.0-litre ZD30 turbo-diesel — both the earlier direct-injection engine and the later common-rail ZD30CR — is calibrated with a custom diesel file focused on bringing boost under proper control, EGT-safe fuelling, and towing and throttle response. Every calibration is developed from the stock read and validated against logged boost, exhaust temperature and rail-pressure data before sign-off.
What the Nissan Patrol ZD30 needs from a calibration
The 3.0-litre ZD30 in the Y61 GU Patrol is one of the most popular touring and four-wheel-drive diesels in the country. It's also known for being sensitive to how it's set up — the factory boost behaviour and fuelling leave it vulnerable if they aren't managed, which is precisely why a proper calibration matters.
The headline of the work is boost control. The ZD30 is prone to an overboost spike that stresses the engine; a real calibration brings the turbo to a controlled, verified target across the range instead of letting it spike. Alongside that, fuelling is shaped around safe exhaust gas temperature under load, so the engine tows and climbs cleanly without running dangerous temperatures.
Throttle response and, on the common-rail cars, rail pressure round out the work — all developed from the stock read and revised against your logs. Done as engineering rather than a generic file, the ZD30 becomes the strong, dependable touring diesel owners want, running within safe boost and thermal limits.
What we calibrate it on
Custom diesel calibration
Bench or OBD-read ZD30 ECU developed into a custom file — controlled boost, EGT-safe fuelling and response.
Datalog review
Boost, EGT and rail-pressure logs reviewed to confirm boost is held to target and the engine stays within safe limits.
What the work concentrates on
Controlled boost
Boost brought to a controlled, verified target across the range — taming the overboost spike the ZD30 is known for, trimmed on logged target-vs-actual.
EGT-safe fuelling
Fuelling shaped around safe exhaust gas temperature under load — the limit that protects the engine, verified on logged EGT.
Towing & response
Response off idle and through the mid-range calibrated for touring and towing, so the Patrol pulls cleanly under load.
Rail pressure (ZD30CR)
On the common-rail cars, rail pressure is coordinated with fuelling so injection is clean and consistent across the range.
Where the Nissan Patrol ZD30 catches workshops out
The overboost spike
The ZD30 is well known for an overboost spike that stresses the engine. The calibration brings boost to a controlled target and verifies it on logged data — the single most important part of the work.
High EGT under load
An over-fuelled ZD30 runs dangerous exhaust temperatures towing and climbing. Fuelling is shaped around safe EGT and confirmed on logged data.
Drivability off idle
Low-down response is boost and fuelling calibration. It's tuned for touring drivability and verified on data, not assumed from a generic map.
Symptom → cause → calibration logic for the issues above:
More in the calibration problem library.
Nissan Patrol ZD30 calibration — questions workshops ask
Which Patrol does this cover?
The Y61 (GU) Patrol with the 3.0-litre ZD30 — both the earlier direct-injection engine and the later common-rail ZD30CR. Each gets a custom file developed from its own stock read.
Why is boost control so important on the ZD30?
The ZD30 is known for an overboost spike that stresses the engine. A proper calibration brings boost to a controlled, verified target across the range and confirms it on logged data — it's the core of the work, not an afterthought.
Is it safe for touring and towing?
Yes when it's done as calibration — boost is controlled and fuelling is shaped around safe exhaust gas temperature, both verified on your logs, so the Patrol tows and tours stronger while staying within safe limits.
What do you need from my workshop?
The stock ECU read plus data logs — boost, exhaust temperature and rail pressure under real load. We develop and validate the calibration from that and revise until confirmed safe and stable.
Calibrate a Nissan Patrol ZD30 with us behind you
Your workshop reads the ECU and logs the car; we develop and validate the calibration from your data. See real Nissan results in the Nissan tune archive. Calibrations are for off-road, touring and towing use; accounts are manually reviewed.
