VW Amarok TDI Tuning & Calibration
The Amarok is the ute that tows and tours like a wagon — and its TDI diesels respond strongly to a calibration built around exhaust temperature and real-world load.

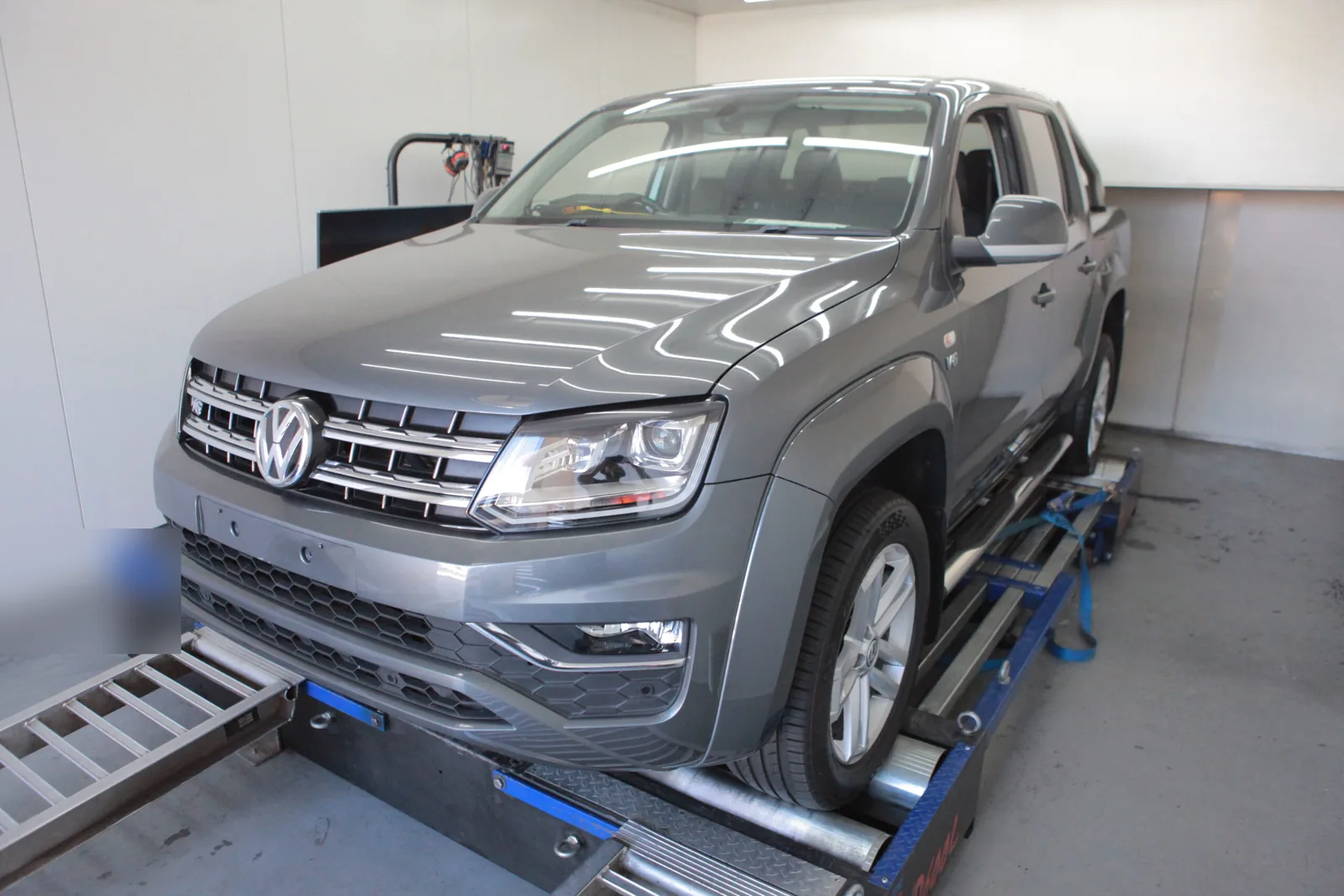

Volkswagen Amarok 2.0 BiTDI & 3.0 V6 TDI
The Volkswagen Amarok 2.0 BiTDI and 3.0 V6 TDI is calibrated with a custom diesel file focused on EGT-safe fuelling, towing and throttle response, and boost and rail-pressure control. Every calibration is developed from the stock read and validated against logged exhaust temperature, boost and rail data — on a diesel that tows, EGT is the limit that matters.
What the VW Amarok TDI needs from a calibration
The Amarok's diesels — the 2.0-litre bi-turbo TDI and the later 3.0-litre V6 TDI — power a ute known for car-like manners and strong towing. Owners want stronger, cleaner low-down response for towing and touring, and a calibration matched to how the vehicle is actually used delivers it.
As with any working diesel, exhaust gas temperature is the limit. The calibration shapes fuelling and response around safe EGT under load and verifies it on logged data, so the vehicle feels stronger without running dangerous temperatures towing up a grade. The 3.0 V6's overboost behaviour and the 2.0's sequential turbos each need their boost delivery coordinated cleanly.
Boost and rail-pressure control and throttle response round out the work, developed from the stock read and revised against your logs. Done as engineering, the Amarok tows and tours the way owners want while staying within safe thermal limits.
What we calibrate it on
Custom diesel calibration
Bench or OBD-read Amarok ECU developed into a custom file — EGT-safe fuelling, response and boost control.
Datalog review
EGT, boost and rail-pressure logs reviewed to verify the calibration under real towing load.
What the work concentrates on
EGT-safe fuelling
Fuelling shaped around safe exhaust gas temperature under load — the limit that protects a working diesel, verified on logged EGT.
Towing & throttle response
Response off idle and through the mid-range calibrated for towing and touring, not just a peak number.
Boost control
Boost delivery coordinated with fuelling — the 3.0 V6's overboost and the 2.0's sequential turbos — so it pulls cleanly under load.
Rail-pressure control
Rail pressure coordinated with fuelling so injection is clean and consistent across the operating range.
Where the VW Amarok TDI catches workshops out
High EGT under towing load
An over-fuelled Amarok runs dangerous exhaust temperatures towing up a hill. Fuelling is shaped around safe EGT and verified on logged data — not a dyno number.
Boost delivery on the 2.0 bi-turbo
The sequential turbos need coordinated control. Boost is calibrated to hand over smoothly and hold target, trimmed on logged target-vs-actual.
Soft response off idle
Low-down response is fuelling and boost calibration. It's tuned for towing and touring drivability and verified on data.
Symptom → cause → calibration logic for the issues above:
More in the calibration problem library.
VW Amarok TDI calibration — questions workshops ask
Which Amarok engines do you tune?
The 2.0-litre bi-turbo TDI and the 3.0-litre V6 TDI. Each gets a custom file developed from its own stock read and validated on logged EGT, boost and rail data.
Is an Amarok tune safe for towing?
Yes when it's done as calibration — fuelling is shaped around safe exhaust gas temperature under load and verified on logged EGT, so the vehicle tows stronger without cooking itself.
Will it help economy and response?
Calibrated torque that lets the vehicle hold higher gears at lower engine speed can help both response and economy for a given duty; outcomes depend on the load and how it's driven.
What do you need from my workshop?
The stock ECU read plus data logs — exhaust temperature, boost and rail pressure under real load. We develop and validate the calibration from that and revise until confirmed safe and stable.
Calibrate a VW Amarok TDI with us behind you
Your workshop reads the ECU and logs the car; we develop and validate the calibration from your data. See real Volkswagen results in the Volkswagen tune archive. Calibrations are for off-road, competition and towing use; accounts are manually reviewed.
