Ford Coyote 5.0 V8 Tuning & Calibration
The Coyote 5.0 is Ford's modern quad-cam V8 — a strong, high-revving Mustang engine that responds to calibration naturally aspirated and comes alive supercharged.

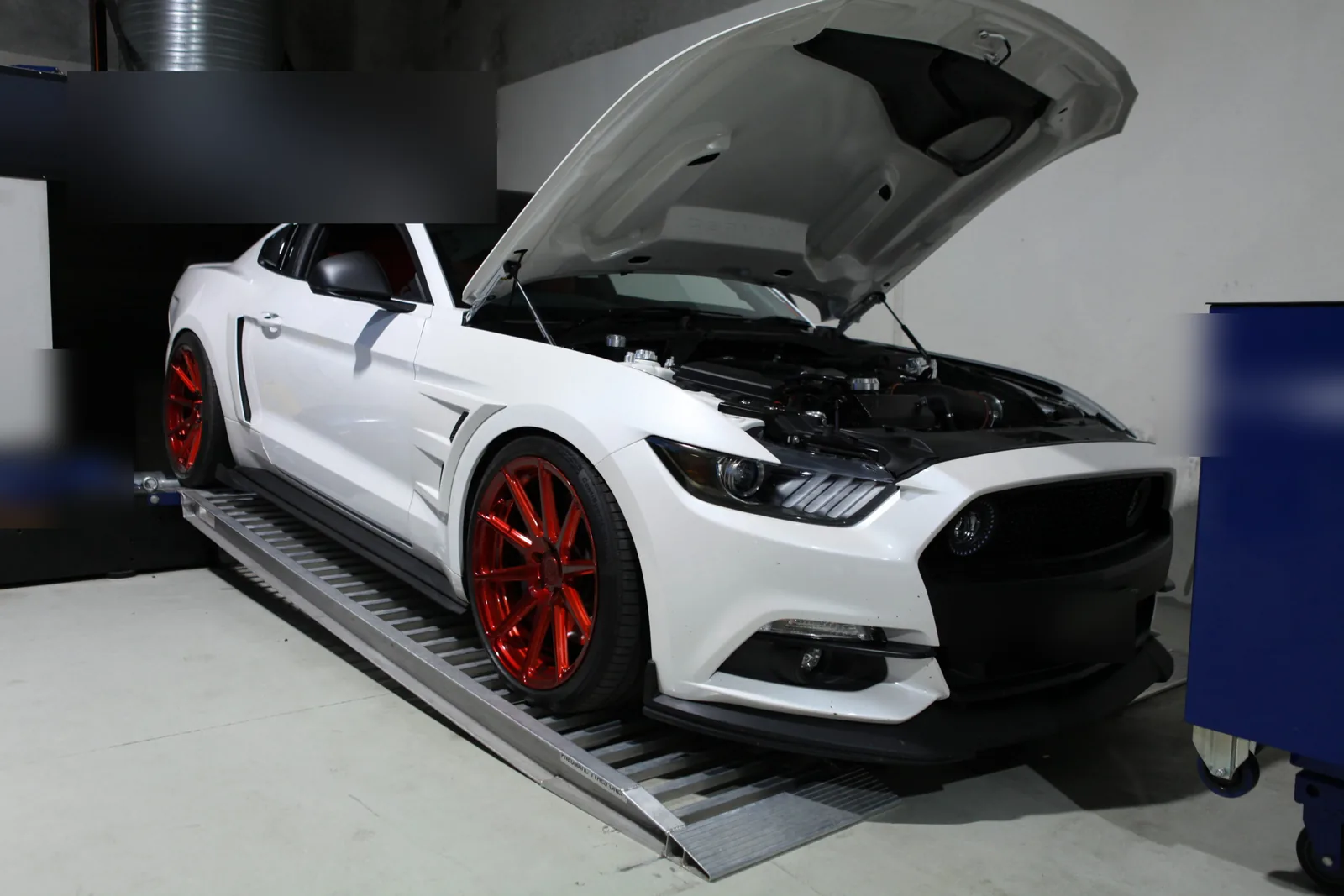

Ford Coyote 5.0L V8 (Mustang GT)
The Ford Coyote 5.0 V8 (Mustang GT) is calibrated on HP Tuners or PCMTec, focused on fuelling and spark for cam and bolt-on packages, drive-by-wire and Ti-VCT cam timing, and boost or supercharger control on forced-induction builds. Every file is developed from the stock read and validated against logged knock, AFR and boost where fitted.
What the Ford Coyote 5.0 V8 needs from a calibration
The Coyote — Ford's 5.0-litre quad-cam V8 in the Mustang GT — is a modern, high-revving V8 with independent variable cam timing (Ti-VCT) and real tuning scope. The strong bottom end takes boost well with supporting work, and HP Tuners gives full access to fuel, spark, the cam timing and the drive-by-wire torque model.
Naturally aspirated, the gains come from matching the calibration to the package — a cam, intake and exhaust change the airflow and demand fresh fuelling, spark and Ti-VCT tuning. Get the volumetric efficiency, spark and cam timing right against logged knock and AFR and an NA Coyote drives clean and makes everything the hardware allows.
Supercharged Coyote builds — the common big-power path — move the work to boost and torque management on top of the fuelling and spark. The torque model and drive-by-wire are calibrated so the ECU delivers the boost it made, with knock proven on data. Done as engineering, the Coyote makes strong, streetable, reliable V8 power.
What we calibrate it on
HP Tuners
The Coyote standard — full access to fuel, spark, Ti-VCT cam timing, the torque model and drive-by-wire, with deep logging.
Datalog review
Knock, AFR and boost logs reviewed so the Coyote file is verified before full load.
What the work concentrates on
VE & fuelling
Volumetric-efficiency and fuelling calibrated to the actual package so AFR is right everywhere the airflow changed.
Ti-VCT cam timing
Independent intake/exhaust cam timing tuned against boost and spark for response and area under the curve.
Boost & blower control
On supercharged or turbo Coyote builds, boost and the torque model calibrated so the ECU delivers the power instead of limiting it.
Spark & knock
Spark advanced where the engine safely takes it, verified against logged knock on the fuel the car runs.
Where the Ford Coyote 5.0 V8 catches workshops out
Flat spots or idle after a cam
A cam changes airflow and idle. The VE, spark, Ti-VCT and idle tables are re-tuned to the new profile on logged data so it idles and drives clean.
ECU pulling timing or torque under boost
The torque model intervenes on a blown build. Torque limits and DBW are calibrated to match the boost so the ECU stops giving the power back.
Knock on pump fuel at power
Spark is verified against logged knock with the run fuel, so a big NA or supercharged Coyote is safe and repeatable rather than living on the factory margin.
Symptom → cause → calibration logic for the issues above:
More in the calibration problem library.
Ford Coyote 5.0 V8 calibration — questions workshops ask
What do you tune the Coyote on?
HP Tuners or PCMTec — full access to fuel, spark, Ti-VCT cam timing, the torque model and drive-by-wire, with the logging depth to validate the calibration.
Can you tune a supercharged Coyote?
Yes. Boost and the torque model are calibrated so the ECU delivers the power instead of pulling it back, with knock proven on logged data. Forced-induction builds are positioned for off-road and competition use.
Do you tune the automatic too?
Where the build needs it, the transmission is calibrated alongside the engine so shift quality and torque limits match the power. Ask about your specific gearbox.
Does the car need to come to you?
No. Your workshop reads the ECU and logs the car; we develop and validate the Coyote calibration from your data. You keep the customer and the dyno.
