Subaru EJ (WRX / STI) Tuning & Calibration
The EJ boxer is the engine the Subaru scene was built on — a rally-bred turbo flat-four that responds hugely to calibration and punishes a lazy one. Getting it right is boost, fuelling and knock, done on data.

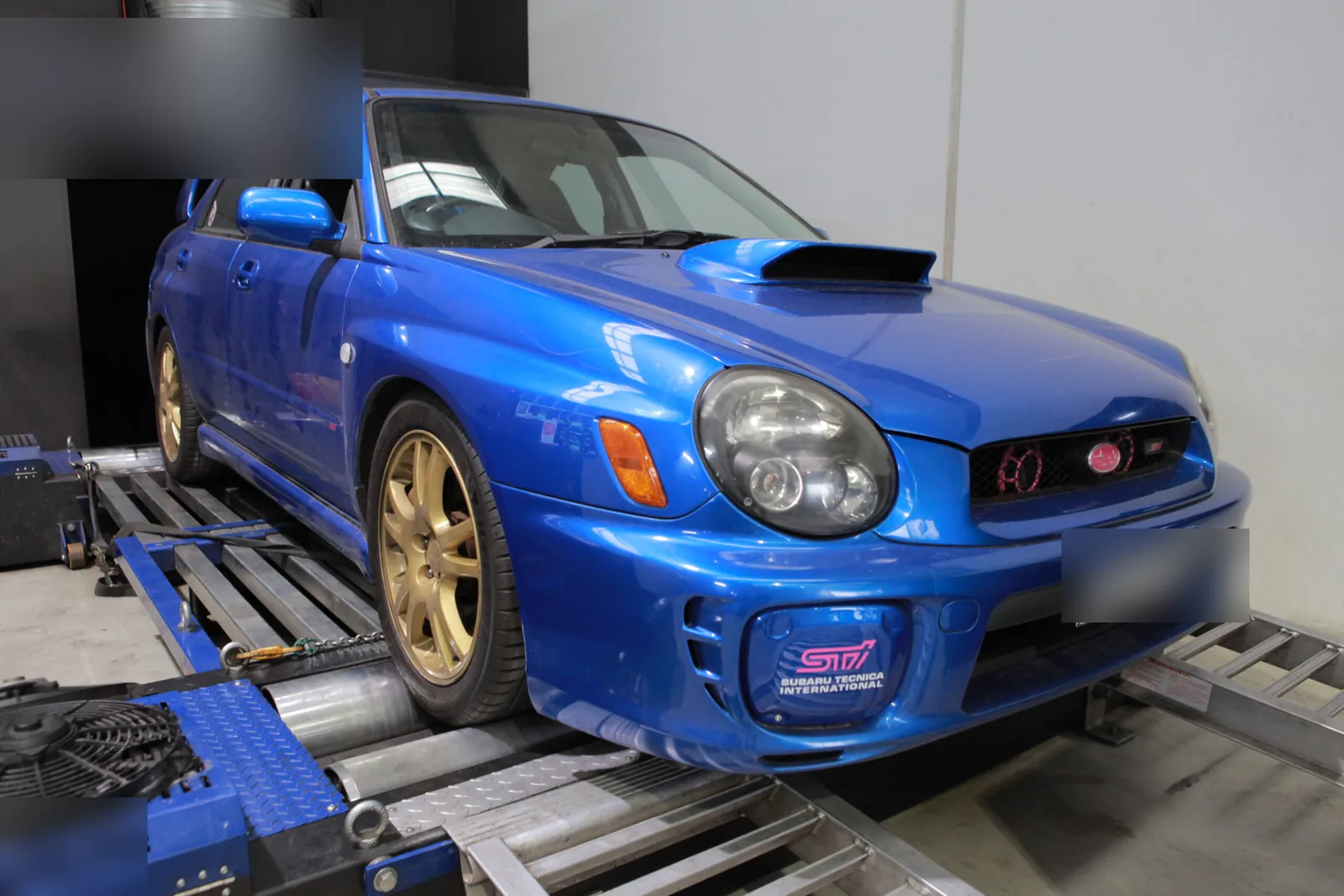

Subaru EJ20 / EJ25 Turbo Boxer-Four
The Subaru EJ20/EJ25 turbo boxer (WRX and STI) is calibrated on ECUtek — the Subaru scene standard — or a standalone, focused on boost control, fuelling for E85 or pump, knock control and AVCS variable-cam timing. Every file is developed from the stock read and validated against logged AFR, knock and boost, because the EJ's ringland and knock margins leave no room for a careless map.
What the Subaru EJ (WRX / STI) needs from a calibration
The EJ20 and EJ25 — the turbocharged boxer-fours in the WRX and STI — are among the most tuned engines in the world, a direct product of Subaru's rally heritage. The horizontally-opposed layout, AVCS cam control and the factory turbo give real scope, but the platform is famously sensitive: detonation and lean spots end EJ ringlands, so calibration quality is everything.
Boost control and fuelling are the core work. The EJ wants a boost curve matched to its turbo and a fuelling table that holds target AFR on pump or E85 without a lean hole on tip-in or at the top. Knock control is verified against the factory knock sensor and logged feedback, not assumed — the margin between a strong tune and a damaged engine is small on an EJ.
AVCS intake-cam timing adds a real tuning axis on the dual-AVCS engines — cam advance traded against boost and torque for response and area under the curve. Done as data-led engineering, the EJ delivers the rally-car character the platform is loved for, repeatably and safely.
What we calibrate it on
ECUtek
The Subaru standard — full boost, fuel, AVCS and knock control on the factory ECU with strong logging.
Standalone ECU
For big-power and competition EJ builds, a standalone gives complete control of fuel, spark and boost.
HP Tuners
Supported where the build calls for it, with deep logging to validate against knock and AFR.
What the work concentrates on
Boost control
Boost curve matched to the turbo so it lands on target and holds, without spiking or tapering across the range.
E85 & pump fuelling
Fuelling calibrated to hold target AFR on pump or E85, with no lean hole on tip-in or at the top — the EJ's weak point.
Knock control
Timing verified against the knock sensor and logged feedback so the calibration protects the ringlands, not just the dyno figure.
AVCS cam timing
Intake-cam advance traded against boost and timing for response and area under the curve on dual-AVCS EJ engines.
Where the Subaru EJ (WRX / STI) catches workshops out
Detonation / ringland risk at the top
The EJ's classic failure. Timing and fuelling are re-based and verified against logged knock with the correct fuel, keeping the top of the map safe rather than stretched.
Lean spot on tip-in or transition
Boxer intake dynamics can lean out on transitions. Fuelling is dialled on logged AFR across load and RPM so the whole map is safe, not just steady state.
Boost taper on an upgraded turbo
Factory boost tables don't suit a bigger turbo. Wastegate duty is re-based near target then trimmed on logged boost target-vs-actual.
Symptom → cause → calibration logic for the issues above:
More in the calibration problem library.
Subaru EJ (WRX / STI) calibration — questions workshops ask
What do you tune the WRX/STI on?
ECUtek on the factory ECU for most EJ builds — it's the Subaru standard with full boost, fuel, AVCS and knock control — or a standalone for big-power and competition cars.
Is E85 worth it on an EJ?
Yes, for a power build — the EJ responds well to ethanol. We calibrate fuelling for the ethanol content run and verify on logged AFR, with fuel-system headroom confirmed at peak.
Will the tune be safe against ringland damage?
That's the priority on an EJ. Timing is verified against logged knock and the factory knock sensor with the correct fuel, so the calibration protects the engine rather than living on the factory margin.
Does the car need to come to you?
No. Your workshop reads the ECU, fits the hardware and logs the car; we develop and validate the EJ calibration from your data. You keep the customer and the dyno.
Calibrate a Subaru EJ (WRX / STI) with us behind you
Your workshop reads the ECU and logs the car; we develop and validate the calibration from your data. See real Subaru results in the Subaru tune archive. Calibrations are for off-road and competition use; accounts are manually reviewed.
